Product Overview
Aluminium Honeycomb Core Door yog lub qhov rooj zoo tshaj plaws tsim los ntawm txhuas alloy - suav nrog lub qhov rooj, qhov rooj nplooj stiles thiab cov ntsia hlau, cov tub ntxhais sab hauv, thiab nto cladding. Lub qhov rooj nplooj nta ib tug txhuas ncej (feem ntau 6063-T5 alloy) nrog ib tug structural aluminium honeycomb core los yog welded aluminium hollow core sau lub sab hauv kab noj hniav, muab tshwj xeeb rigidity, flatness, thiab tej yam kuj ntawm ib feem ntawm qhov hnyav ntawm cov khoom ntoo los yog steel qhov rooj.
Muaj xws li cov qhov rooj sab hauv (chaw qhov rooj, chav dej qhov rooj, chav ua noj qhov rooj), sab nrauv qhov rooj nkag, hluav taws- cov qhov rooj ntsuas, thiab cov qhov rooj lag luam customized rau tsev so, tsev kho mob, tsev kawm ntawv, thiab cov tsev ua haujlwm. Tag nrho - txhuas kev tsim kho kom ntseeg tau tias kev ua haujlwm tsis muaj dej tsis zoo, xoom formaldehyde emission, Class A qhov ntsuas hluav taws kub, thiab lub neej ua haujlwm rau warping, rotting, thiab kab puas tsuaj.
Ntsiab nta & qhov zoo
- 100% waterproof - xoom o, warping, los yog delamination nyob rau hauv tej av noo; zoo tagnrho rau chav dej, chav ua noj, ntug hiav txwv dej.
- Chav Kawm A hluav taws- ntsuas (tsis yog-combustible) - aluminium ncej + aluminium honeycomb core raws li cov lej hluav taws kub nruj tshaj plaws.
- Zero formaldehyde & VOC-dawb - tsis muaj ntoo, tsis muaj kua nplaum, tsis muaj tshuaj lom neeg; nyab xeeb rau tsev, tsev kho mob, thiab tsev kawm ntawv.
- Termite & pes pov pov thawj - tag nrho - hlau tsim yog impervious rau lom degradation.
- Lub teeb yuag - ib txwm 900 × 2100 mm qhov rooj nplooj hnyav tsuas yog 18-25 kg (piv rau 35-50 kg rau cov ntoo tawv).
- Superior flatness & rigidity - honeycomb core resists dabtsi yog khoov thiab tuav lub qhov rooj ncaj rau lub neej.
- Lub suab rwb thaiv tsev zoo heev - honeycomb qauv ntxiv rau ntug cov ntsaws ruaj ruaj ua tiav 28-35 dB Rw suab txo.
- Thermal rwb thaiv tsev - txhuas ncej nrog thermal so + insulated core tiav Ud Tsawg dua los yog sib npaug rau 1.8 W / m²·K.
- Qhov chaw ruaj khov - hmoov txheej, ntoo- hloov pauv, lossis anodizing tiv thaiv khawb, UV fading, thiab corrosion.
- Rov ua dua tshiab - txhawb nqa cov ntawv pov thawj ntsuab.
Technical Specifications
|
Parameter |
Specification |
|
Qhov Rooj Ncej Khoom |
6063-T5 aluminium alloy profile, phab ntsa thickness 1.8-2.5 hli |
|
Qhov Rooj Nplooj Ncej |
6063-T5 aluminium stiles & rails, phab ntsa thickness 1.5-2.0 hli |
|
Internal Core |
Aluminium honeycomb core (3003 alloy, ntawv ci 0.04-0.06 hli, cell 4-8 hli) LOSSIS welded aluminium hollow core |
|
Daim tawv nqaij |
0.6-1.2 hli aluminium ntawv (3003 / 5052 alloy) |
|
Txheem Qhov Rooj Thickness |
35mm, 40mm, 45mm, 50mm, 55mm |
|
Qhov ntau thiab tsawg (W × H) |
800 × 2100, 900 × 2100, 1000 × 2100, 1200 × 2100 hli; kev cai qhov ntau thiab tsawg muaj |
|
Qhov Rooj Leaf Luj (900 × 2100 × 45 mm) |
Kwv yees li . 20–25 kg |
|
Nto tiav |
hmoov txheej, ntoo- nplej hloov pauv, PVDF txheej, anodizing, txhuam |
|
Ntoo-Txoj kev xaiv |
Oak, walnut, teak, tshauv, wenge, cherry, grey ntoo qhib, dawb tshauv |
|
Khoom Xim |
Dawb, grey, dub, champagne, nyiaj, kev cai RAL |
|
Kev ntsuas hluav taws |
Chav Kawm A (tsis yog- core combustible); hluav taws- ntsuas qhov rooj ntawv pov thawj txog li 120 feeb muaj |
|
Suab rwb thaiv tsev (Rw) |
28-35 dB (nyob ntawm cov tub ntxhais thickness thiab ntug seals) |
|
Thermal Transmittance (Ud) |
Tsawg dua los yog sib npaug rau 1.8 W / m²·K (nrog thermal tawg ncej) |
|
Hardware Compatibility |
Standard Euro-groove rau hinges, xauv, tes; sib haum nrog ntau hom |
|
Cov iav / vaj huam sib luag xaiv |
Integrated visions vaj huam sib luag, puv - iav insert, los yog khoom vaj huam sib luag raws li xav tau |
|
Txoj Kev Xaiv |
Aluminium sill, stainless hlau sill, poob -down foob, los yog yaug (barrier-dawb) |
|
Gasket / Foob |
EPDM lossis silicone roj hmab foob ntawm 3 sab rau acoustic thiab thermal ua haujlwm |
Daim ntawv thov
Qhov chaw nyob: chav tsev qhov rooj, chav dej qhov rooj, chav ua noj qhov rooj, sam thiaj qhov rooj
Commercial: tsev so qhua qhov rooj, chaw ua hauj lwm muab faib qhov rooj, khw muag khoom nkag qhov rooj
Kev kho mob: lub tsev kho mob lub tsev kho mob qhov rooj, lub qhov rooj huv si, chav kuaj qhov rooj
Kev kawm: lub tsev kawm ntawv lub qhov rooj, lub qhov rooj dormitory, lub tsev qiv ntawv qhov rooj
Industrial: Hoobkas chaw ua hauj lwm qhov rooj, cog chav tsev qhov rooj, ntug dej hiav txwv qhov rooj
Hluav taws- cov ntawv siv ntsuas: cov qhov rooj stairwell, cov qhov rooj hauv tsev, cov qhov rooj khiav tawm
Hluav taws kub-Rated Qhov Rooj Configuration
For fire-rated applications, the door leaf is constructed with an aluminum honeycomb core of increased density, aluminum frame with intumescent strips, and fire-rated hardware. Certified fire ratings muaj xws li:
• 60-feeb hluav taws qhov rooj (FD60)
• 90-feeb hluav taws qhov rooj (FD90)
• 120-feeb hluav taws qhov rooj (FD120)
Kuaj rau GB 12955 / EN 1634-1 / UL 10C cov qauv. Daim ntawv pov thawj muaj raws li qhov kev thov.
Ntim & Shipping
Txhua lub qhov rooj nplooj yog qhwv hauv PE ua npuas ncauj daim ntawv thiab corrugated cardboard, nrog ntxiv dag zog plywood ntug tiv thaiv ntawm tag nrho plaub fab. Lub qhov rooj thav duab yog bundled thiab qhwv. Pallets yog ISPM-15 raws fumigated ntoo. Tag nrho - thawv FCL shipping muaj (40HQ pom zoo). MOQ: 10-20 qhov rooj ib qhov loj / tiav rau cov qauv qauv; 30+ rau kev cai specs. Lub sij hawm xa tuaj: 15-25 hnub ua haujlwm rau cov qhov rooj txheem; 25-40 hnub ua hauj lwm rau hluav taws-rated los yog customized qhov rooj.
Txhua yam -Aluminium Qhov Rooj FAQ
Q: 1. Dab tsi yog tag nrho - txhuas qhov rooj?
A: Txhua qhov - txhuas qhov rooj yog lub qhov rooj qhov rooj uas lub qhov rooj nplooj, ncej, thiab cov qauv sab hauv yog ua los ntawm txhuas alloy - tsis muaj ntoo, hlau, lossis cov khoom sib xyaw. Cov tub ntxhais tuaj yeem yog cov khoom siv txhuas honeycomb lossis txhuas thav duab nrog thermal-so technology. Cov alloys feem ntau suav nrog 6063-T5 rau tus ncej thiab 3003/5052 rau tawv. Cov qhov rooj no tau siv dav rau cov qhov rooj nkag hauv tsev, cov khw muag khoom lag luam, cov qhov rooj hauv chav dej, thiab cov chaw muaj av noo nyob qhov twg cov ntoo tsoos lossis cov qhov rooj hlau tsis ua haujlwm.
Q: 2. Dab tsi yog tus qauv specifications?
A: Common specifications:
• Qhov rooj thickness: 35mm, 40mm, 45mm, 50mm, 55mm
• Qhov ntau thiab tsawg (customizable):
- Ib qhov rooj: 700–1000mm (W) × 2000–2400mm (H)
- Ob chav qhov rooj: 1200–2000mm (W) × 2000–2400mm (H)
• Ncej profile thickness: 1.8mm, 2.0mm, 2.5mm
• Daim tawv nqaij thickness: 0.8mm, 1.0mm, 1.2mm
• Core: aluminium honeycomb (tus qauv) los yog PU ua npuas ncauj (thermal rwb thaiv tsev)
• Kev xaiv iav: 5mm tempered, 5+12A+5 ob chav glazed
• Nto tiav: hmoov txheej, PVDF, ntoo- hloov pauv, anodizing
Q: 3. Qhov kev txiav txim yam tsawg kawg nkaus (MOQ) yog dab tsi?
A: Feem ntau MOQ yog 10-30 qhov rooj rau qhov ntau thiab tsawg thiab tiav. Kev cai- qhov rooj loj lossis lub qhov rooj uas muaj kev ua tiav tshwj xeeb (xws li, kev cai ntoo- cov nplej, xim xim) yuav xav tau 20–50 lub qhov rooj yam tsawg kawg nkaus. Kev txiav txim ntau (khoom-theem) tau txais tus nqi zoo dua. Qhov rooj kho vajtse (kuav tes, ntsuas phoo, hinges) tuaj yeem muab ntim lossis muab cais. Thov muab koj lub rooj teem sijhawm rau kev hais kom raug.
Q: 4. Txhua qhov - Aluminium qhov rooj siv nyob qhov twg?
A: Common applications:
• Chaw nyob: lub qhov rooj nkag, lub sam thiaj qhov rooj, chav dej qhov rooj, chav ua noj qhov rooj
• Kev lag luam: cov qhov rooj hauv khw muag khoom, qhov chaw ua haujlwm muab faib qhov rooj, lub qhov rooj hauv tsev so
• Institutional: lub tsev kawm ntawv qhov rooj, tsev kho mob qhov rooj, tsoom fwv lub tsev qhov rooj
• High- thaj chaw av noo: qhov chaw hauv pas dej da dej, lub qhov rooj spa, thaj chaw ntug dej hiav txwv
• Hluav taws- ntsuas cov ntawv thov: hluav taws- ntsuas qhov rooj aluminium (cov qauv ntawv pov thawj)
• Niaj hnub nimno architecture: minimalist frameless qhov rooj, pivot qhov rooj, zawv zawg qhov rooj
Q: 5. Dab tsi yog qhov zoo ntawm qhov rooj ntoo lossis hlau?
A: vs Ntoo Qhov Rooj:
① Zero ya raws kev puas tsuaj: yuav tsis warp, o, rot, los yog delaminate nyob rau hauv cov huab cua ntub
② Termite- pov thawj: tiv thaiv kab mob - zoo tagnrho rau huab cua sov
③ Lub neej ntev: 30+ xyoo nrog kev saib xyuas tsawg tsawg vs 10-15 xyoo rau ntoo
④ Hluav taws kub resistant: txhuas tsis yog -combustible (Class A)
⑤ Lub teeb: yooj yim rau nruab thiab maj mam rau ntawm pob khawm thiab thav duab
vs Steel Qhov Rooj:
① Tsis muaj xeb: txhuas ib txwm tiv thaiv corrosion, txawm nyob rau hauv ntug hiav txwv ntsev cua
② Kev ua haujlwm thermal zoo dua: nrog thermal-so technology, superior rwb thaiv tsev
③ Kev zoo nkauj niaj hnub: seamless saib nrog kev xaiv dav dua
④ Recyclable: 100% recyclable nrog qis carbon footprint

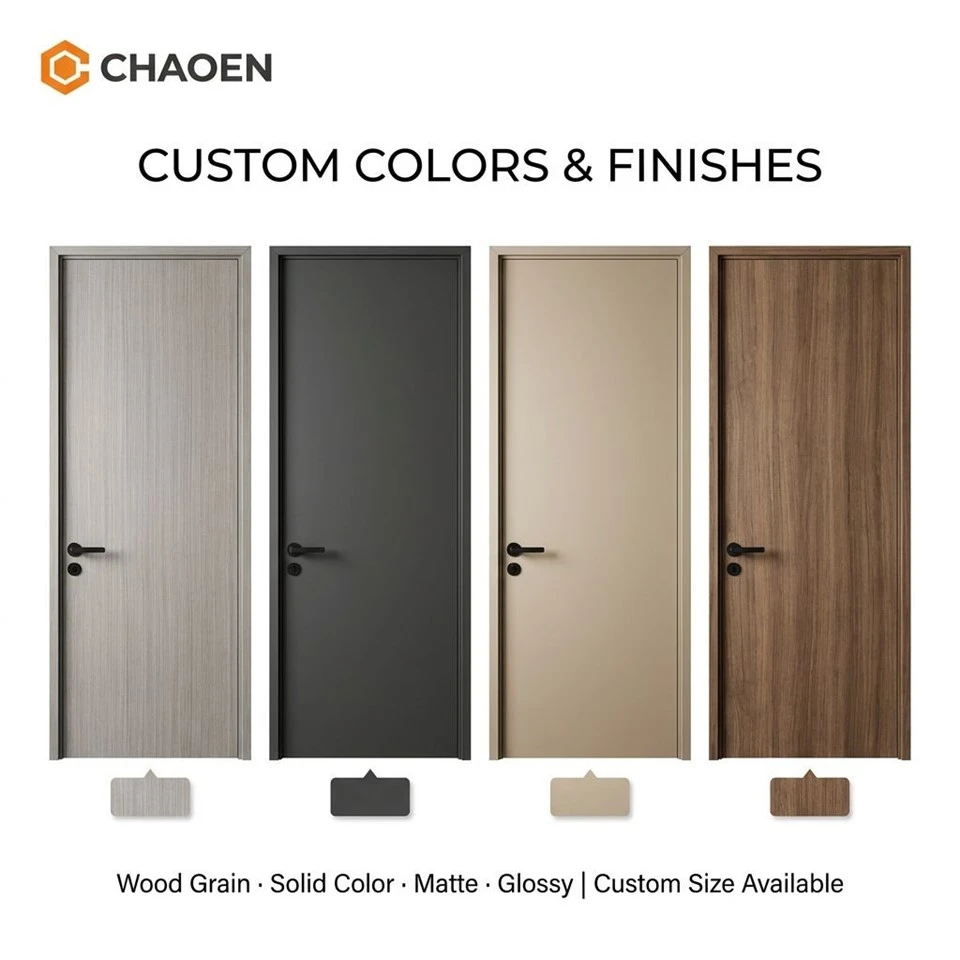

Q: 6. Dab tsi nto finishes muaj?
A: • hmoov txheej: dav RAL xim ntau yam, zoo heev durability - tus qauv rau vaj tse thiab kev lag luam qhov rooj
• PVDF (Fluorocarbon): zoo tshaj UV thiab huab cua tiv taus - pom zoo rau cov qhov rooj sab nrauv hauv huab cua hnyav
• Ntoo- hloov pauv cov nplej: ntoo qhib tiag tiag, walnut, teak, thiab kev cai ntoo textures - nrov rau lub qhov rooj nkag
• Anodizing: hard metallic nto, superior khawb thiab hnav tsis kam
• Txhuam / daim iav tiav: premium metallic aesthetic rau cov khoom kim heev
• Dual-xim: txawv sab hauv thiab sab nraud xim - nrov rau lub qhov rooj nkag chav tsev
Q: 7. Puas yog qhov hluav taws kub - ntsuas thiab ruaj ntseg?
A: Hluav taws kub tsis kam: Txhua qhov -aluminium qhov rooj nrog aluminium honeycomb core raug ntsuas Class A tsis yog-combustible (GB 8624). Rau cov ntawv pov thawj hluav taws- cov ntawv ntsuas ntsuas, peb muab cov qhov rooj kuaj rau 30-, 60-, thiab 90-feeb ntsuas hluav taws nrog cov ntsaws ruaj ruaj thiab cov khoom siv tau ntawv pov thawj.
Kev Ruaj Ntseg: Cov qhov rooj txais cov txheej txheem ntau-point locking systems, deadbolts, and reinforced strike plates. Lub rigid aluminium thav duab thiab cov khoom siv tsim ua tau zoo heev raug yuam- nkag tsis kam. Smart lock compatibility muaj nyob rau ntawm kev thov.
Q: 8. Lub sij hawm ua cov khoom txhuas yog dab tsi?
A: • Tus qauv loj, Tshuag tiav: 7-10 hnub ua haujlwm
• Tus qauv loj, kev cai xim / tiav: 15-20 hnub ua haujlwm
• Kev cai loj nrog kev ua tiav tshwj xeeb: 20-30 hnub ua haujlwm
• Hluav taws kub- ntsuas qhov rooj / ntawv pov thawj: 25–35 hnub ua haujlwm
Kev xa khoom tiag yog nyob ntawm qhov kev txiav txim ntim thiab lub Hoobkas ua haujlwm. Rush xaj muaj nyob rau ntawm tus nqi ntxiv. Hu rau peb pab pawg muag khoom kom paub meej lub sijhawm.
Q: 9. Lub qhov rooj ntim thiab xa khoom li cas?
A: Ntim: Txhua lub qhov rooj yog qhwv hauv PE ua npuas ncauj thiab npuas zaj duab xis, nrog rau cov ntaub thaiv npog npog. Cov qhov rooj tau ntim rau hauv pallets (txog 20 lub qhov rooj rau ib lub pallet) lossis hauv kev cai - ua ntoo crates rau thawv shipping. Iav panels yog cais crated nrog ntxiv padding.
Shipping:
• Hauv tsev: cov rooj tog zaum tshwj xeeb logistics nrog qhov rooj - mus rau - qhov rooj xa khoom
• Thoob ntiaj teb: FCL hiav txwv freight (20GP lossis 40HQ), qhov rooj ntim vertically lossis tiaj tus nyob ntawm hom thawv
Cov qhov rooj iav xav tau kev saib xyuas ntxiv - peb siv kev poob siab- nqus cov khoom ntim. Tag nrho cov khoom xa tuaj suav nrog daim ntawv teev cov khoom ntim khoom thiab cov lus qhia sib dhos.
Q: 10. Yuav ua li cas yog tag nrho - Aluminium qhov rooj?
A: Cov kauj ruam installation:
① Npaj qhov qhib: xyuas kom cov phab ntsa qhib yog cov kav dej, theem, thiab square
② Tso lub thav duab: ruaj ntseg aluminium ncej rau ntawm phab ntsa siv cov bolts expansion
③ Dai lub qhov rooj nplooj: mount hinges thiab kho kom du viav vias thiab txawm qhov sib txawv
④ Txhim kho kho vajtse: haum kov, xauv, ze dua, thiab ntaus phaj
⑤ Seal thiab tiav: siv cov huab cua sealant nyob ib ncig ntawm tus ncej
Cov lus qhia ntxaws txog kev teeb tsa tau muab nrog txhua qhov kev txiav txim. Kev teeb tsa cov yeeb yaj kiab thiab kev txhawb nqa tej thaj chaw deb muaj. Rau cov haujlwm loj, peb pab neeg tuaj yeem muab rau ntawm - saib xyuas qhov chaw.
