Aluminium Honeycomb Core Face Sheet

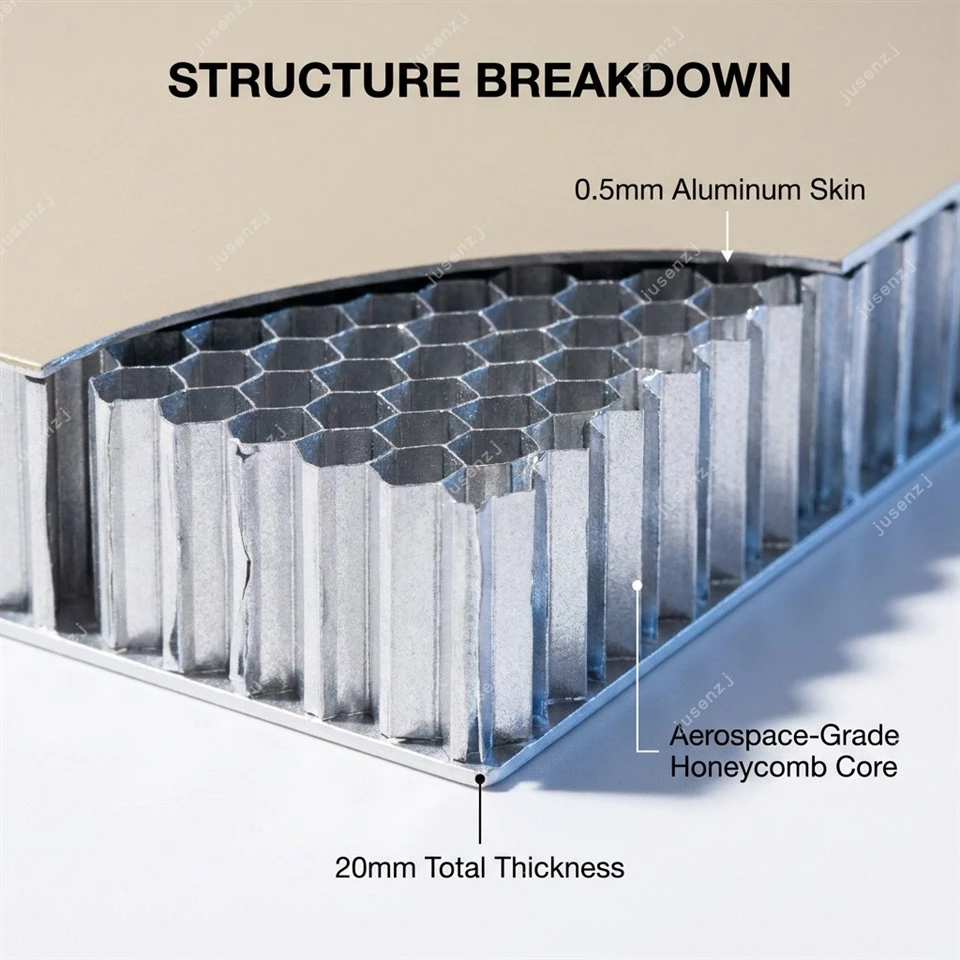

A: Aluminium Honeycomb Vaj Huam Sib Luag yog ib lub teeb ci ntsa iab - cov qauv sib xyaw uas muaj peb txheej sib txuas: aluminium alloy ntsej muag daim ntawv (0.5-1.0mm tuab, muaj nyob rau hauv tej hmoov- xim coated los yog PVDF tiav), aluminium honeycomb core (hexagonal hlwb feem ntau 6-10mm nyob rau hauv. 4mm raws li nyias daim ntawv txhuas foos), uas yog tsim los ntawm aluminium foil. (0.5-1.0 hli). Cov tub ntxhais yog tsim los ntawm kev luam ntawv nplaum kab ntawm cov ntawv txhuas ntawv, stacking lawv nyob rau hauv kev sib raug zoo, kho cov nplaum nyob rau hauv tshav kub thiab siab, thiab ces nthuav cov pawg los tsim cov hexagonal cell qauv - tib cov txheej txheem siv los tsim honeycomb cores rau aircraft floors, helicopter rotor hniav, thiab Formula 1 lub tsheb. Cov tub ntxhais nthuav dav yog sib koom ua ke rau ntawm lub ntsej muag thiab cov ntaub ntawv rov qab nyob rau hauv kev tswj cov cua sov thiab lub siab nyob rau hauv lub tiaj tus- txaj xovxwm, tsim kom muaj vaj huam sib luag ruaj khov. Qhov tshwm sim yog ib lub vaj huam sib luag uas ua tiav kev khoov khov kho piv rau cov ntawv hlau khoom peb mus rau plaub zaug nws qhov hnyav. Cov Neeg Muag Khoom Zoo Tshaj Plaws 2025 Series yog tsim nyob rau hauv ISO 9001, ISO 14001, thiab ISO 45001 certified tswj systems, nrog A2-s1,d0 kev faib hluav taws xob raws li EN 13501-1. Muaj nyob rau hauv plaub xim xim (Metallic Champagne Kub, Matte Charcoal Black, Off-White Cream, Vibrant Txiv kab ntxwv) ntxiv rau kev cai RAL / Pantone xim tsis txwv.

A: Common specifications:
• Tag nrho cov thickness: 6mm, 8mm, 10mm, 12mm, 15mm, 18mm, 20mm, 25mm (tag nrho ntau yam npog cov hniav zoo nkauj sab hauv mus rau cov khoom siv sab nrauv)
• Lub ntsej muag tuab: 0.5mm (tus qauv sab hauv), 0.7mm, lossis 1.0mm (sab nrauv / hnyav-lub luag haujlwm); aluminium alloy 3003 lossis 5052 nyob ntawm cov ntawv thov
• Back sheet thickness: 0.5mm (standard), 0.7mm, los yog 1.0mm (sab nrauv); tib alloy li lub ntsej muag daim ntawv rau balanced thermal expansion
• Core cell loj: 6mm, 8mm, 10mm (cov hlwb me dua rau cov vaj huam sib luag nyias thiab cov khoom zoo; cov hlwb loj dua rau cov vaj huam sib luag tuab thiab cov nqi tsim nyog)
• Txheem daim ntawv loj: 1220 × 2440mm, 1220 × 3050mm, 1500 × 3050mm; kev cai qhov ntev mus txog 1500 × 6000mm
• Cov txheej txheem tiav: Hlau Champagne Kub, Matte Charcoal Black, Off-White Cream, Vibrant Txiv kab ntxwv; Kev cai RAL / Pantone, hloov pauv ntoo, pob zeb zoo nkauj, thiab PVDF txheej muaj
• Ntug: Hoobkas- txiav square ntug (tus qauv); routed, beveled, folded, los yog kev cai CNC ntug profiles muaj los ntawm fabrication
• Vaj huam sib luag hnyav: 3.5 kg/m² (6mm) mus rau 7.5 kg/m² (25mm) - kwv yees li 60–70% sib dua li cov khoom txhuas ntawv ntawm sib npaug dabtsi yog khoov nruj

A: MOQ rau cov xim zoo tshaj plaws yog 50 square metres ib xim - kwv yees li 17 tus qauv 1220 × 2440mm panels. Qhov kev siv tau tsawg kawg no qhia txog qhov tseeb tias plaub xim no nyob rau hauv kev tsim khoom tas mus li thiab peb tuav cov khoom tsis txaus los txhawb kev ceev - tig xaj. Rau kev cai RAL / Pantone xim, MOQ yog 200 square metres ib xim vim yog cov hmoov txheej txheej thiab xim txuam txheej txheem. Volume pricing tiers muab qhov zoo dua mus rau ib -square-meter tus nqi ntawm 200, 500, 1000, thiab 5000+ m². Rau tej yaam num loj heev (10,{18}} m²), peb muab qhov project- tus nqi tshwj xeeb, kev teem caij tsim khoom, thiab kev xa tawm raws li qhov kev tsim kho. Cov qauv ntau rau kev pom zoo tshwj xeeb, thuam- cov vaj huam sib luag, thiab cov qauv tsim muaj rau txhua yam xim thiab cov qauv tshwj xeeb.

A: Common applications:
• Sab hauv phab ntsa cladding: Feature phab ntsa, txais tos backdrops, corridor panels, thiab dav sab hauv surfacing nyob rau hauv kev lag luam, kev tos txais, kev kho mob, kev kawm ntawv, thiab tej yaam num nyob rau hauv lub tsev - cov ntaub ntawv loj tshaj plaws
• Cov vaj huam sib luag sab nrauv: Cov kab hluav taws xob façade, cov tsev pheeb suab, lub sam thiaj cladding, thiab cov vaj huam sib luag nkag - A2 qhov hluav taws kub ntsuas ua rau siv rau siab - nce thiab pej xeem cov tsev.
• Ceiling systems: Suspended qab nthab panels nyob rau hauv T- kab sib chaws, qhib-cell qab nthab baffles, thiab kev cai qab nthab feature ntsiab - lub teeb yuag panels txo structural load ntawm qab nthab suspension
• Kem cladding: nkhaus thiab tiaj kab qhwv nyob rau hauv qhov chaw tos txais, atriums, thiab cov chaw pej xeem - panels yuav muab tau tiaj tus rau qhov chaw khoov los yog ua ntej - nkhaus rau specification
• Rooj tog & txee vaj huam sib luag: Txee qhov rooj, rooj saum npoo, rooj saum, txee, thiab cov rooj tog kev cai - cov tub ntxhais dej tsis zoo tshem tawm qhov o thiab warping ntawm ntoo-raws li panels
• Kos npe & Zaub: Lub tsev qhia cov paib, cov chaw nrhiav txoj hauv kev, cov phab ntsa ntawm tus kheej, thiab cov tshuab tso saib pom - tiaj tus, ruaj khov substrate rau cov duab kos thiab cov teeb pom kev zoo
• Cleanroom & Tswj ib puag ncig: Phab ntsa thiab qab nthab vaj huam sib luag rau cov chaw muag tshuaj, hluav taws xob, thiab chav kuaj huv huv - tsis yog-txheej txhuas nto nrog ISO Class 5–8 compatibility
• Thauj & Tubrog nkoj: of the elevator cabin interiors, train carriage wall panels, ship and yacht cabinetry, aircraft galley panels - lightweight, vibration-resistant, fire-safe composite for mobile applications

A: ① Lub teeb yuag: 3.5-7.5 kg / m² (60-70% sib zog dua li cov khoom txhuas sib npaug) vs. khoom txhuas ntawm 8-20 kg / m², pob zeb ntawm 25-50 kg / m², cement board ntawm 15-25 kg / m² - txo cov qauv kev ua haujlwm, kev thauj khoom thiab kev thauj khoom
② Hluav taws kub-Resistant A2: A2-s1,d0 nyob rau hauv EN 13501-1 (tsis yog-combustible, tsawg pa luam yeeb, xoom droplets) vs. ACM (B-s1,d0 los yog qis dua vim combustible solid polyethylene (1–D) core), ntoo tsim-hloov sib xyaw
③ Flatness: Feem ntau<1.5mm deviation over 2440mm span vs. ACM (oil-canning and waviness in large formats), solid aluminum (waviness without additional stiffening) - honeycomb core provides continuous support across the entire panel surface
④ ISO Certified Quality: ISO 9001/14001/45001 manufacturing vs. uncertified commodity production - documented txheej txheem tswj, batch traceability, zoo ib yam xim thiab dimension, ua raws li cov ntaub ntawv rau thoob ntiaj teb tej yaam num
⑤ Tsim yooj yooj yim: Unlimited RAL / Pantone xim, ntoo grain, pob zeb zoo nkauj, nws yog xim hlau, gloss, matte, anti-graffiti, anti- kab mob coatings los ntawm ib tug manufacturing platform vs. txwv tag kev xaiv los ntawm ib tug - cov ntaub ntawv panels
⑥ Fabrication-tus phooj ywg: Txiav, drilled, routed, thiab folded nrog cov txheej txheem rhiav tooling vs. khoom hlau uas yuav tsum tau hnyav- cov cuab yeej siv, pob zeb xav tau dej- dav hlau txiav - ib yam khoom ua haujlwm nrog cov khoom siv uas twb muaj lawm
⑦ Sustainable: Yam tsawg kawg nkaus 60% rov ua dua txhuas cov ntsiab lus, 100% rov ua dua thaum kawg ntawm lub neej, xoom VOC hmoov txheej txheej txheem vs. cov vaj huam sib luag uas tsis yog - cov cores rov ua dua tshiab, cov khoom pleev xim nrog VOC emissions, thiab cov ntaub ntawv destined rau landfill

A: • Metallic Champagne Kub: Multi- txheej txheej txheej txheej txheej - primer + metallic pigment mid-coat + UV-stable clear topcoat. Kub, luminous kub nrog subtle metallic tob. Nrov tshaj plaws rau lub tsev so lobbies, khw muag khoom feature phab ntsa, elevator cabins, thiab hwm architectural interiors.
• Matte Charcoal Black: Sib sib zog nqus, tsis yog -cov xim dub matte hmoov txheej. Bold, sophisticated, thiab niaj hnub. Txaus siab rau cov koom haum hauv pawg thawj coj saib xyuas, siab -kawg cov khw muag khoom tom qab, sab nrauv soffit panels, thiab cov phab ntsa zoo nkauj hauv cov qauv niaj hnub.
• Off-White Cream: Sov dawb matte hmoov txheej nrog LRV ~ 80%. Lub universal nruab nrab - tau teev nyob rau hauv txoj kev kho mob, cov chaw kawm ntawv, cov chaw ua hauj lwm, cov tsev nyob sab hauv, thiab nyob qhov twg ib tug huv si, kaj, tsis yog - kho kom zoo nkauj yog xav tau.
• Vibrant Txiv kab ntxwv: Bold, saturated txiv kab ntxwv hmoov txheej. Ua hauj lwm raws li txoj kev nrhiav cov lus hais, hom hom xim xim, qhov tseem ceeb ntawm kev tsim vaj tsev, thiab cov chaw kawm xim xim. Kev pom kev zoo siab rau cov phab ntsa feature, kos npe panels, thiab tsim accents.
• Kev Cai RAL/Pantone Colours: Spectro-matched hmoov txheej nrog Delta E Tsawg dua lossis sib npaug rau 1.5 xim raug. Txhua xim los ntawm RAL Classic, RAL Tsim, Pantone, NCS, lossis cov neeg siv khoom- muab cov qauv xim. Ua raws li cov batch rau ntau-phase tej yaam num.
• PVDF Coating Option: Rau cov ntawv thov sab nrauv uas xav tau ntau tshaj UV tiv thaiv thiab xim tuav (20+ xyoo). Muaj nyob rau hauv cov xim khoom thiab xim hlau tiav. Pom zoo rau ventilated facades, canopy soffits, thiab sab nrauv kem cladding.
• Cov Txheej Txheem Tshwj Xeeb: Los tiv thaiv- kab mob nyiaj- ion (ISO 22196, Ntau dua lossis sib npaug li 99.9% txo), tiv thaiv- graffiti (sacrificial lossis ruaj khov systems), tiv thaiv - ntiv tes matte, thiab textured fine- cov qauv ua tiav rau kev ua haujlwm tshwj xeeb.

A: EN 13501-1 A2-s1,d0 yog European qauv hluav taws kev faib tawm uas sawv cev rau qib siab tshaj plaws ntawm cov hluav taws kub ua tau zoo los ntawm cov khoom siv hauv tsev tsis yog-homogeneous (composite). Txhua feem ntawm kev faib tawm muaj lub ntsiab lus tshwj xeeb: A2 txhais tau tias cov khoom lag luam tsis muaj txiaj ntsig tseem ceeb rau hluav taws kub - nws raug cais raws li tsis yog -combustible, nrog kev tso cua sov tsawg thiab tsis muaj kev pab cuam flashover. Qhov no yog ib qho kev faib tawm hauv qab A1 (tshwj tsis yog{20}}combustible, xws li cov pob zeb lossis cib) thiab yog qhov ua tau zoo tshaj plaws rau cov vaj huam sib luag sib xyaw nrog cov xim pleev xim. s1 yog qhov kev faib tawm cov pa luam yeeb - s1 yog qhov ntsuas tau zoo tshaj plaws (SMOGRA Tsawg dua lossis sib npaug li 30 m² / s² thiab TSP600s Tsawg dua lossis sib npaug li 50 m²), txhais tau tias lub vaj huam sib luag tsim cov pa taws tsawg dua thaum raug hluav taws kub. Qhov no yog qhov tseem ceeb rau kev khiav tawm ntawm cov neeg nyob hauv kev nyab xeeb, vim tias kev nqus pa pa - tsis ncaj qha hluav taws kub - yog thawj qhov ua rau hluav taws tuag. d0 yog qhov kev faib hluav taws xob hluav taws xob hluav taws xob - d0 txhais tau tias xoom flaming droplets lossis cov khoom hauv thawj 600 vib nas this ntawm qhov hluav taws kub, tiv thaiv kev sib kis ntawm hluav taws rau cov khoom hauv qab ntawm lub vaj huam sib luag. Hauv cov ntsiab lus siv hauv tsev, A2-s1, d0 kev faib tawm txhais tau hais tias lub vaj huam sib luag tuaj yeem teev nyob rau hauv lub tsev siab siab (qhov uas tam sim no raug txwv tsis pub nyob rau hauv feem ntau cov cheeb tsam tom qab Grenfell Tower hluav taws), nyob rau hauv cov pej xeem sib sau ua ke chaw, chaw kho mob, tsev kawm ntawv, tsheb thauj mus los hubs, thiab txhua qhov project uas hluav taws kub kev nyab xeeb yog ib tug thawj tsim parameter. Nws ua tau raws li qhov yuav tsum tau ua ntawm BS 8414 thiab NFPA 285 facade hluav taws kuaj cov qauv thaum nruab los ua ib feem ntawm cov txheej txheem façade. Qhov tseem ceeb rau cov khoom tshwj xeeb: qhia txog A2 aluminium honeycomb vaj huam sib luag tshem tawm cov hluav taws kev nyab xeeb kev nyab xeeb hauv kev xaiv ACM (aluminium composite material) vaj huam sib luag nrog cov combustible polyethylene core, uas feem ntau ua tiav tsuas yog B-s1, d0 lossis qis dua. Nrog aluminium honeycomb, koj tau txais tib qhov kev tsim qauv yooj yim, xim ntau yam, thiab kev tuav hnyav li ACM, nrog kev ua haujlwm hluav taws kub hauv chav sib txawv nkaus.

A: Txheem fabrication thiab installation workflows rau aluminium honeycomb panels:
• Fabrication: Panels raug txiav kom loj siv CNC router los yog vaj huam sib luag pom nrog carbide -tipped hniav. Ntug profiles (square, beveled, rebated) yog routed. Kev txiav tawm rau lub thawv hluav taws xob, cov hloov pauv, thiab cov khoom siv yog CNC- routed. V-groove routing ntawm lub ntsej muag rov qab ua rau folding rau 90℃kaum profiles. Txhua qhov kev tsim khoom siv cov cuab yeej siv hauv kev cob qhia - tsis muaj cov cuab yeej tshwj xeeb xav tau.
• Kev teeb tsa: Cov vaj huam sib luag tau teeb tsa siv cov tshuab kho tshuab (tso clips, cov ntaub thaiv npog, cov tshuab kaw lus / lub tais) rau sab nrauv facades; adhesive-bonded los yog Z-clip systems rau sab hauv phab ntsa cladding; T- daim phiaj nteg- nyob rau hauv rau suspended ceilings; thiab ncaj qha - mus rau - substrate bonding rau kev kho dua tshiab ntawm qhov chaw uas twb muaj lawm. Txhua txoj kev yog qhuav thiab VOC-dawb.
Kev sib xyaw ua ke ntawm cov vaj huam sib luag hnyav, cov cuab yeej siv tau zoo, thiab ntau qhov kev teeb tsa ua pov thawj txhais tau tias aluminium honeycomb panels tuaj yeem tsim thiab teeb tsa los ntawm cov tuam tsev tsim vaj tsev hlau thiab cov neeg ua haujlwm façade yam tsis tau nqis peev hauv cov cuab yeej tshwj xeeb lossis kev cob qhia. Peb muab kev qhia fabrication nrog pom zoo cov cuab yeej ceev, pub tus nqi, thiab hniav specifications; installation phau ntawv nrog cov ncauj lus kom ntxaws system kos duab rau txhua txoj kev mounting; thiab kev txhawb nqa rau fabricators thiab installers tshiab rau txhuas honeycomb. Ntawm - qhov chaw kawm rau thawj qhov project yog muaj los tsim cov qauv zoo. Cov vaj huam sib luag tuaj txog ua ntej- ua tiav nrog cov yeeb yaj kiab tiv thaiv nyob rau hauv qhov chaw, uas tsuas yog tshem tawm tom qab kev teeb tsa tiav - kom ntseeg tau cov xim uas tau teev tseg thiab ua tiav tuaj txog ntawm lub tsev nyob rau hauv tib qho xwm txheej lawv tawm hauv lub Hoobkas.

A: • Cov Khoom Muag Khoom Muag Zoo Tshaj Plaws (Champagne Kub, Charcoal Black, Cream, Txiv Kab Ntxwv) hauv qhov ntau thiab tsawg: 5-7 hnub ua haujlwm (tsis muaj Tshuag khaws cia kom ceev - tig xaj)
• Kev Cai RAL / Pantone xim lossis tshwj xeeb tiav (PVDF, ntoo lis): 15-25 hnub ua haujlwm (xws li kev pom zoo xim qauv)
• Tsis yog- qhov ntev, kev cai thickness, los yog loj- ntim qhov project xaj: 20–35 hnub ua haujlwm (phased xa cov sij hawm muaj rau ntau-theem kev tsim ua haujlwm)
Lub sij hawm ua cov hmoov lead tiag yog nyob ntawm qhov kev txiav txim tam sim no ntim thiab cov sijhawm tsim khoom. Kev txiav txim maj maj feem ntau tuaj yeem ua raws li - thov qhia rau peb pab neeg ntawm koj lub sijhawm kawg thaum tso qhov kev txiav txim. Peb yuav lees paub lub sijhawm xa khoom meej hauv daim ntawv cog lus muag.

A: ISO- txheem export ntim: Txhua lub vaj huam sib luag yog lub Hoobkas- qhwv hauv PE tiv thaiv zaj duab xis nrog tev- tawm rov qab tam sim tom qab kev soj ntsuam zoo - zaj duab xis tiv thaiv qhov chaw tiav los ntawm kev hla mus, kev tsim, thiab kev teeb tsa, thiab raug tshem tawm tsuas yog thaum kawg xa rov qab. Cov vaj huam sib luag yog tiaj tus -stacked ntawm fumigated ntoo pallets nrog npuas interlayers ntawm txhua lub vaj huam sib luag. Ntau cov xim thiab thicknesses nyob rau hauv ib qho kev txiav txim yog ntim nrog kom meej cov ntawv cais. Txhua lub pallet yog qhwv hauv hnyav- huab cua huab cua- cov yeeb yaj kiab tiv thaiv, ruaj nrog cov kaum tiv thaiv thiab polyester strapping, thiab sau npe nrog: lub npe phiaj xwm, tus lej xaj xaj, xim xim, vaj huam sib luag qhov ntev, thickness, ntau, pallet tooj (X ntawm Y), thiab batch / ntau tus lej rau tag nrho traceability. Cov kev daws teeb meem ntim ntim kev cai muaj rau qhov project -cov kev cai tshwj xeeb.
Shipping xaiv:
• Hiav txwv freight: FCL (20GP/40HQ) los yog LCL - tus qauv rau thoob ntiaj teb tej yaam num; tiaj tus- pob tsim tsim kom siv lub thawv (kwv yees li 800–1200 m² rau 20GP thawv nyob ntawm qhov tuab ntawm vaj huam sib luag)
• Express courier: DHL, FedEx, UPS - rau cov khoom siv coj mus kuaj, xaj me me (50–200 m²), thiab kev xa khoom sai; qhov rooj-rau- qhov rooj xa nrog taug qab
• Rail freight: Muaj rau cov teb chaws Europe thiab Central Asia txoj kev - nqi -kev xaiv nruab nrab ntawm hiav txwv thiab huab cua freight rau nruab nrab- ntim xaj
Peb koom tes nrog thoob ntiaj teb freight forwarders paub txog kev tsim khoom siv logistics rau tej yaam num ntawm txhua lub teb chaws. Tag nrho cov khoom xa tuaj suav nrog cov ntaub ntawv ua tiav: A2 daim ntawv pov thawj hluav taws kub (EN 13501-1), ISO 9001/14001/45001 daim ntawv pov thawj, cov ntaub ntawv kev nyab xeeb ntawm cov ntaub ntawv, kev tsim thiab kev teeb tsa, cov ntawv pov thawj xim, thiab cov ntaub ntawv khaws tseg batch traceability. Cov khoom xa tuaj tau raug pov hwm tag nrho nrog lub qhov rooj - mus rau - qhov rooj taug qab. Rau cov phiaj xwm loj -, peb muab cov kev pab cuam xa tawm raws li lub sijhawm tsim kho, cov ntaub ntawv sib sau ua ke rau kev tsim cov ntawv tso cai, thiab kev sib koom tes ua haujlwm thoob plaws hauv qhov kev txiav txim - mus rau kev xa khoom. Peb pom zoo kom xaj 3-5% cov khoom seem rau txhua xim thiab cov lus qhia tshwj xeeb kom npog qhov chaw tsim khoom pov tseg, hloov kho rau yav tom ntej, thiab kev hloov kho qhov project. Cov batch sib txuam yog lav rau reorders hauv 5 xyoos.
