Khoom Description

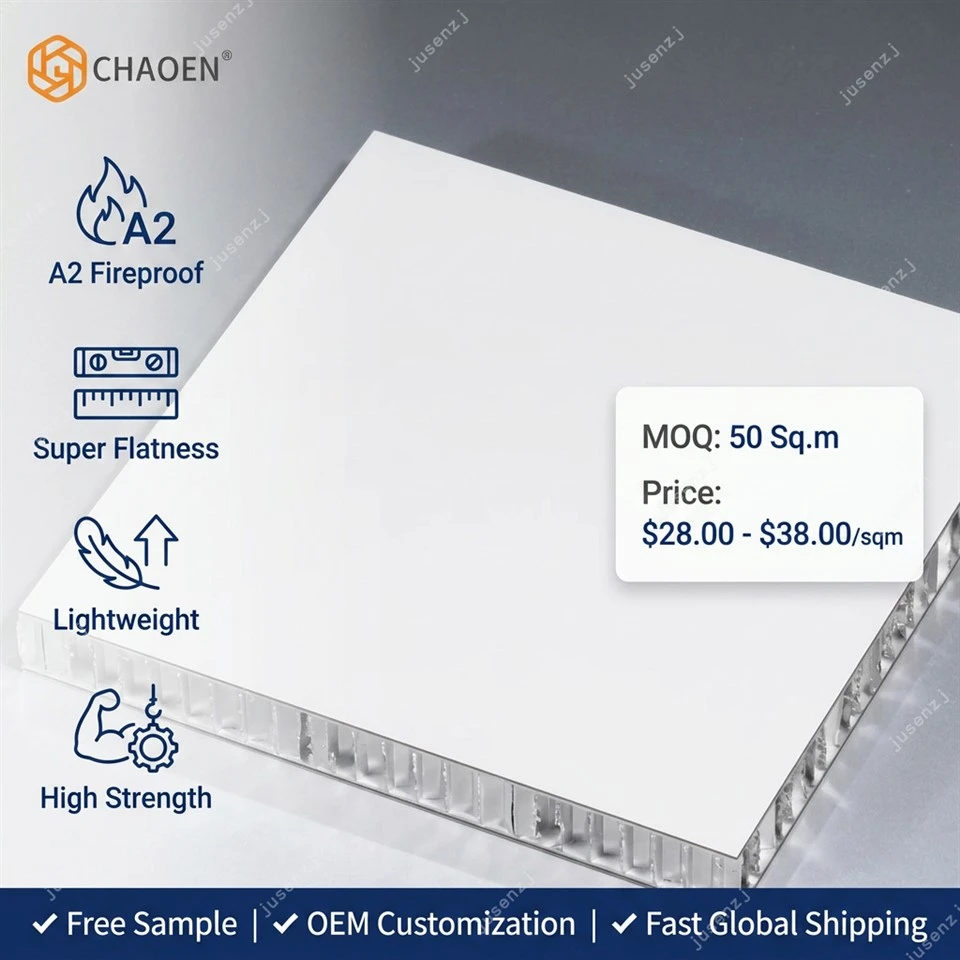

Dawb dawb loj - hom vaj huam sib luag nteg ntawm lub kaum sab xis -- lub ntsej muag kom tiaj nws nyeem zoo li daim iav, cov tub ntxhais honeycomb nthuav tawm ntawm ntug txiav nrog huv, niaj hnub cell geometry khiav tag nrho lub vaj huam sib luag qhov tob: A2 Fireproof, Super Flatness, Lub Teeb, thiab Siab Zog ntawm $ 28.00 Sample rau $ 38. Shipping -- qhov no yog Dawb A2 Fireproof Aluminium Honeycomb Vaj Huam Sib Luag, lub vaj huam sib luag tshwj xeeb uas cov kws ua haujlwm façade, cov neeg ua haujlwm ntawm cov phab ntsa, cov neeg tsim qauv huv chav tsev, cov kws tsim vaj tsev sab hauv tsev kho mob, thiab pab pawg ua lag luam haum rau kev yuav khoom xaiv thaum qhov project xav tau kev sib xyaw ntawm cov khoom siv hluav taws xob tsis sib haum xeeb A2 hluav taws kub ntsuas, ntsuas kev ua tau zoo thiab cov vaj huam sib luag. composite nyob rau hauv ib tug dawb nto tag uas nyeem raws li architectural nruab nrab nyob rau hauv txhua txhua lub teeb pom kev zoo. Super Flatness yog qhov tshwj xeeb kom zoo dua uas cais cov vaj huam sib luag no los ntawm cov txheej txheem txhuas vaj huam sib luag hauv cov ntawv thov qhov loj-hom dawb qhov chaw tau teeb tsa hauv kev khiav mus tas li nyob rau hauv raking lub teeb - qhov xwm txheej uas nthuav tawm txhua qhov waviness, hneev nti, thiab qhov chaw tsis zoo nyob rau hauv lub ntsej muag vaj huam sib luag thiab hloov qhov kev txiav txim siab tshwj xeeb rau hauv qhov chaw tsis zoo thov yog tias lub vaj huam sib luag flatness kam rau ua tsis tau kuaj xyuas ua ntej xaj. Cov qauv dawb, OEM customization, ceev ceev thoob ntiaj teb shipping - MOQ 50 sqm, scroll down rau flatness cov ntaub ntawv thiab tag nrho specifications.
|
Khoom npe |
Aluminium Honeycomb Vaj Huam Sib Luag |
Hom |
CHAOEN |
|
Khoom siv |
Aluminium 3003.5052 |
Xim |
Customized |
|
Hluav taws kub Resistant Level |
A1 |
Kub Resistance |
-55 ° ~ 220 ° C |
|
Qhov hnyav |
2-5KG / square Meter |
Flexural zog |
95%W 5%N |
|
Siv |
Tsev Kho kom zoo nkauj Phab ntsa / Sab hauv Kho kom zoo nkauj, Aerospace, Tshiab Zog Lub Tsheb Roj Teeb Pob, Cov Khoom Siv Hauv Tsev, Khoom Siv Khoom Siv Khoom Siv |
Txheem Loj |
1220 * 2440 hli (Customized) |
|
MOQ |
200 Square Meter / Txhua Xim |
Qauv |
Dawb qauv muaj |
|
Kev them nyiaj |
T / T, L / C, lwm yam |
Ntim |
Raws li cov neeg siv khoom xav tau |
Dawb A2 Hluav Taws Xob Txhuas Txhuas Honeycomb Vaj Huam Sib Luag - Super Flatness, Lub teeb yuag, siab zog
Peb Dawb A2 Hluav Taws Xob Txhuas Txhuas Honeycomb Vaj Huam Sib Luag yog qhov tshwj xeeb zoo tshaj plaws - qib vaj huam sib luag rau sab nrauv facade cladding, curtain phab ntsa infill, tsev kho mob thiab huv si -chav tsev sab hauv phab ntsa thiab qab nthab, kev lag luam chaw tos txais cladding, tshav dav hlau davhlau ya nyob twg sab hauv, thiab ib qho loj -format dawb saum npoo daim ntawv thov qhov twg A2 combustible tswj, {5} aluminium honeycomb structural kev ua tau zoo yog ib txhij yuav tsum tau nyob rau hauv qhov project specification.
A2 Fireproof ntawv pov thawj yog thawj qhov kev ua raws cai ntawm lub vaj huam sib luag no. Tag nrho -aluminium honeycomb sandwich siv -- aluminium alloy lub ntsej muag nplooj ntawv sib koom ua ke rau aluminium honeycomb core uas tsis muaj polymer, tsis muaj combustible muab tub lim, thiab tsis muaj cov khoom siv organic -- ua tiav A2 tsis-combustible faib raws li cov qauv kev ntsuas hluav taws, ua tau raws li cov txheej txheem cladding ntawm lub tsev lis dej num CP faus kev lag luam uas txwv tsis pub muaj ntawm occupied vaj tse saum toj ib qhov siab. Thib peb-tog A2 daim ntawv pov thawj hluav taws kub muaj nyob rau hauv qhov project specification xa thiab ntshuam cov ntaub ntawv ua raws.
Super Flatness yog qhov kev tsim khoom tsis zoo uas txawv ntawm lub vaj huam sib luag no nyob rau hauv loj - hom ntawv dawb saum npoo. Lub vaj huam sib luag lub ntsej muag ua siab ntev yog tswj los ntawm cov xovxwm- cov txheej txheem kev sib khi thiab lub ntsej muag daim ntawv hlau xaiv kom xa ib qhov chaw uas nyeem zoo ib yam nyob thoob plaws lub vaj huam sib luag qhov ntev nyob rau hauv ob qho tib si ncaj qha thiab raking teeb pom kev zoo -- tseem ceeb rau tsev kho mob txoj kev hauv tsev, tshav dav hlau hauv chav tsev, thiab cov chaw tos txais kev lag luam uas txuas ntxiv loj-hom dawb cladding vaj huam sib luag tam sim ntawd ua rau pom lub teeb pom kev zoo. Flatness kam rau ua cov ntaub ntawv muaj nyob rau hauv cov ntaub ntawv qhia txog kev thov.
Lub teeb yuag & Lub zog muaj zog ua tau zoo los ntawm honeycomb core geometry ua rau loj - hom vaj huam sib luag teeb tsa ntawm lub teeb yuag kab hlau rhuav phab ntsa thiab ncaj qha - kho cov kab ke tsis muaj qhov hnyav substrate. OEM Customization muaj rau vaj huam sib luag qhov ntev, lub ntsej muag daim ntawv thickness, core tob, thiab nto txheej specification. Fast Global Shipping los ntawm lub Hoobkas mus rau qhov project site. Nqe: $28.00 txog $38.00 ib sqm nyob ntawm specification. Daim ntaub ntawv: Sab nrauv Facade, Curtain Wall Infill, Hospital Interiors, Clean-Chav Cladding, tshav dav hlau Terminals, Commercial Lobbies, Dawb Feature Phab ntsa. MOQ: 50 sqm. Cov qauv pub dawb muaj - tiv tauj peb rau cov ntaub ntawv flatness, A2 daim ntawv pov thawj hluav taws, thiab OEM hais.
Aluminium Honeycomb Vaj Huam Sib Luag FAQ
Q: 1. Dab tsi yog aluminium honeycomb vaj huam sib luag?
A: Lub vaj huam sib luag aluminium honeycomb yog lub teeb yuag, siab - lub zog sib xyaw vaj huam sib luag ua los ntawm ob daim ntawv txhuas daim tawv nqaij sib koom ua ke rau aluminium honeycomb core nyob rau hauv qhov kub thiab txias. Lub hexagonal honeycomb qauv muab lub zog zoo heev - rau - qhov hnyav piv thiab zoo dua flatness. Cov ntaub ntawv ntawm daim tawv nqaij muaj xws li 3003 thiab 5052 aluminium alloy, nrog rau qhov chaw tiav xws li PVDF txheej, PE txheej, lossis anodizing.
Q: 2. Cov txheej txheem specifications yog dab tsi?
A: Common specifications:
• Tag nrho cov thickness: 6mm, 10mm, 15mm, 20mm, 25mm, 30mm (customizable)
• Daim tawv nqaij thickness: 0.5mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm
• Core cell loj: 6mm, 8mm, 10mm, 12mm
• Txheem vaj huam sib luag loj: 1220 × 2440mm, 1500 × 3000mm (max 2000 × 6000mm)
• Core ceev: 60–120 kg/m³
• Nto tiav: PVDF, PE, anodizing, ntoo- hloov pauv
Q: 3. Qhov kev txiav txim yam tsawg kawg nkaus (MOQ) yog dab tsi?
A: Feem ntau MOQ yog 50-100 square metres, nyob ntawm qhov specifications thiab nto tiav. Kev cai lossis tsis yog - qhov loj me yuav tsum tau hloov kho MOQ. Kev txiav txim loj dua tau txais txiaj ntsig zoo dua tus nqi tsev. Thov muab koj qhov loj me thiab qhov xav tau kom muaj nuj nqis rau kev hais lus raug.
Q: 4. Qhov twg yog aluminium honeycomb panels siv?
A: Common applications:
• Lub tsev facades: siab -nce kab hlau rhuav phab ntsa, tshav dav hlau, chaw ua yeeb yam
• Kho kom zoo nkauj sab hauv: ceilings, partitions, of the elevator interiors, wall cladding
• Kev thauj mus los: tsheb ciav hlau interiors, metro chaw nres tsheb cladding, marine interiors
• Muaj: chav huv huv panels, khoom vaj tse, rooj zaum tshuab
• Rooj tog: siab-kawg txee panels, zaub sawv, signage
• Aerospace: aircraft sab hauv panels, overhead bins
Q: 5. Dab tsi yog qhov zoo ntawm cov khoom txhuas vaj huam sib luag?
A: ① Qhov hnyav dua: tsuas yog 1/3 rau 1/5 qhov hnyav ntawm cov khoom txhuas ntawm tib lub thickness
② Superior flatness: honeycomb core kom rigidity thiab resists deformation
③ Suab & cua sov rwb thaiv tsev: huab cua hnab ris hauv cov tub ntxhais muab cov rwb thaiv tsev zoo
④ Cua siab-load tsis kam: zoo tagnrho rau - thaj tsam kab hlau rhuav phab ntsa
⑤ Tus nqi qis dua: lub teeb yuag txhais tau tias kev thauj mus los yooj yim dua thiab txhim kho sai dua
⑥ Eco- phooj ywg: 100% recyclable aluminium, ua tau raws li cov qauv tsev ntsuab
Q: 6. Dab tsi nto finishes muaj?
A: • PVDF (Fluorocarbon): huab cua tsis zoo, 25+ xyoo lifespan, pom zoo rau sab nrauv phab ntsa
• PE (Polyester): cov xim nplua nuj, tus nqi- zoo, haum rau sab hauv thiab ib nrab- thaj chaw raug
• Anodizing: tawv tawv, zoo li xim hlau, hnav thiab corrosion resistant
• Ntoo- nplej / pob zeb- hloov pauv cov nplej: zoo nkauj zoo nkauj rau sab hauv thiab rooj tog
• Txhuam / iav tiav: nws yog xim hlau zoo nkauj rau siab -kawg qhov chaw lag luam
Q: 7. Puas yog vaj huam sib luag hluav taws kub- tiv taus?
A: Yog. Lub vaj huam sib luag tau ntsuas Class A hluav taws-resistant (tsis yog-combustible) nyob rau hauv GB 8624. Ob lub aluminium tawv thiab honeycomb core yog hlau thiab yuav tsis hlawv lossis tso pa tawm. Cov khoom ua tau raws li qhov hluav taws kub- kev nyab xeeb yuav tsum muaj rau lub tsev facades thiab daim ntawv thov kev thauj mus los rau pej xeem. Thib peb-cov ntawv ceeb toom hluav taws kub muaj nyob rau thaum thov.
Q: 8. Lub sij hawm ua cov khoom txhuas yog dab tsi?
A: • Cov khoom lag luam txheem: 3-5 hnub ua haujlwm
• Tus qauv loj, xim xim: 7-15 hnub ua haujlwm
• Tsis yog-tus qauv / kev ua tiav tshwj xeeb: 15–25 hnub ua haujlwm
Lub sij hawm xa tuaj tiag tiag nyob ntawm qhov kev txiav txim ntim thiab cov sij hawm tsim khoom tam sim no. Hu rau peb pab neeg muag khoom kom paub meej lub sijhawm. Kev xaj xaj maj mam tuaj yeem haum.
Q: 9. Yuav ua li cas cov panels ntim thiab xa tuaj?
A: Ntim: Txhua lub vaj huam sib luag yog sib cais los ntawm PE tiv thaiv zaj duab xis, qhwv hauv corrugated cardboard los yog siv cov ntoo crates nrog kaum tiv thaiv.
Shipping:
• Hauv tsev: kev thauj mus los tshwj xeeb lossis LTL xa nrog lub qhov rooj - mus rau - qhov rooj pabcuam
• Thoob ntiaj teb: FCL / LCL hiav txwv freight (FOB / CIF cov nqe lus), 20GP lossis 40HQ ntim
Peb cov txheej txheem kev tiv thaiv ntim khoom khaws cia kev thauj mus los kom tsawg kawg nkaus. Peb pab nrog kev thov nyob rau hauv qhov tsis tshua muaj tshwm sim ntawm shipping puas.
Q: 10. Yuav ua li cas yog honeycomb panels ntsia?
A: Cov txheej txheem installation:
• Phab ntsa (qhuav- dai): aluminium brackets txuas rau lub ntsiab qauv - rau lub tsev facades
• Adhesive bonding: structural adhesive lossis ob -sided daim kab xev - rau sab hauv cladding
• Screw kho: ua ntej-drilled qhov nrog countersunk screws - rau qab nthab thiab partitions
• Ncej ntxig: panels slotted rau hauv txhuas ncej profiles - rau lub qhov rooj, txee, tso saib
Cov phiaj xwm façade yuav tsum siv cov neeg ua haujlwm tau ntawv pov thawj. Cov ntawv thov sab hauv tuaj yeem ua haujlwm los ntawm kev ua haujlwm dav dav -tawm cov pab pawg, ua raws li tus neeg muag khoom daim ntawv qhia kev teeb tsa. Peb muab kev pab txhawb nqa.
